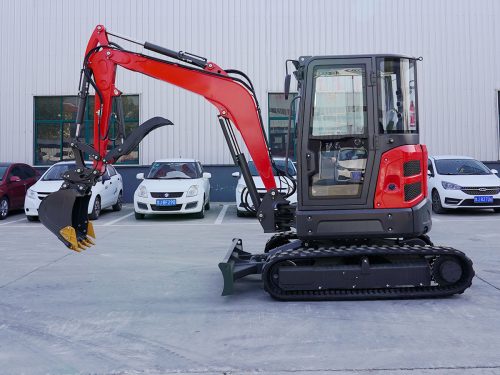

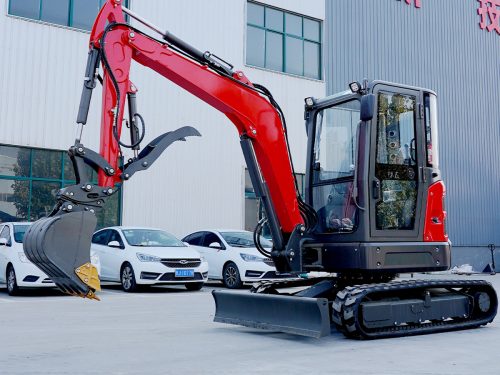

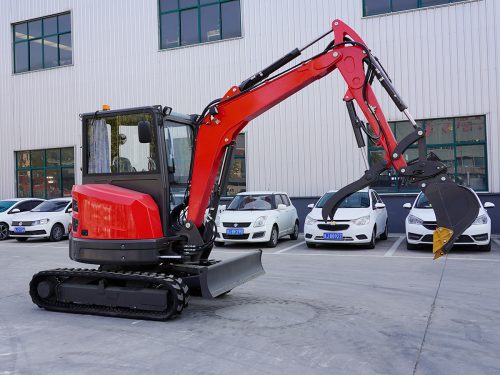

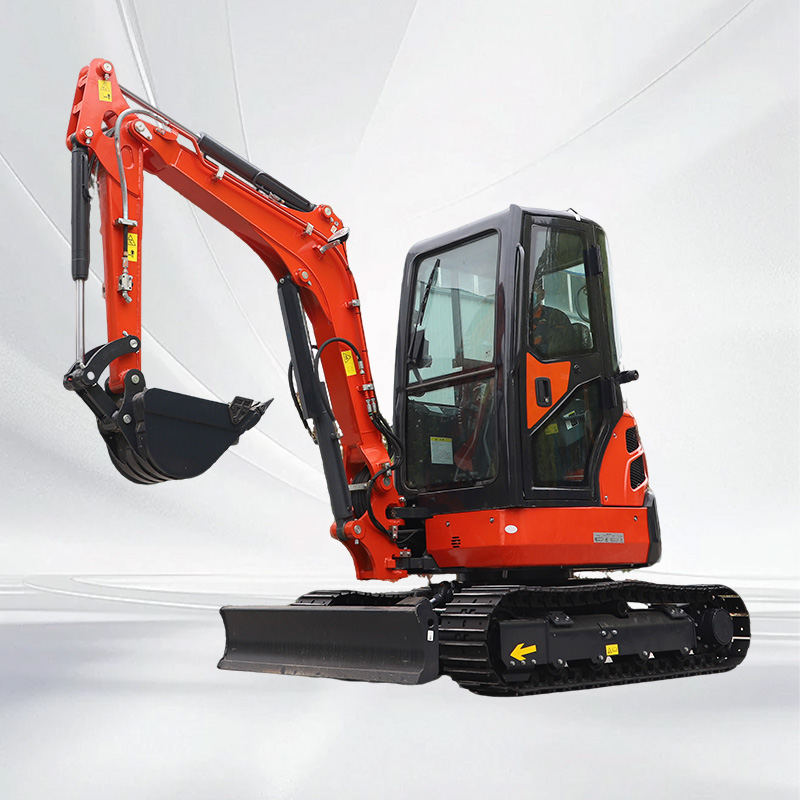

3.5 Ton Mini Excavator Overview
The 3.5 ton mini excavator, also known as a compact excavator or mini digger, is designed for versatility, efficiency, and durability. It is the perfect balance between power and maneuverability, making it ideal for small to medium construction projects, landscaping, farming, and municipal works. Whether you are looking for a reliable 3.5 ton excavator for sale or a cost-effective rental option, this machine ensures high productivity at a competitive price.
Key Features of the 3.5 Ton Mini Excavator
High-performance engine with low fuel consumption and reliable emissions compliance.
Compact design for easy maneuverability in tight spaces.
Durable crawler tracks ensuring stability on uneven ground.

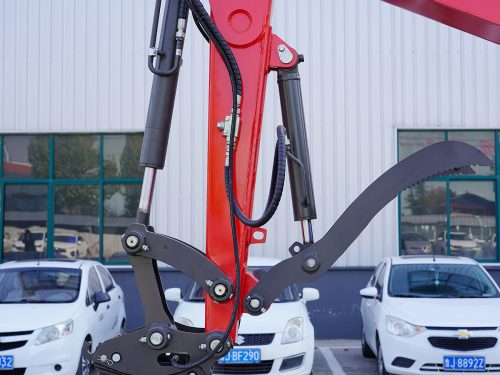

Wide range of attachments available: buckets, augers, breakers, and more.
Comfortable operator cabin with optional air conditioning for long working hours.
3.5 Ton Mini Excavator Specifications
| Specification | Value |
|---|---|
| Working weight | 4000KG |
| Swing Speed | 1-11 rpm |
| Gradeability | 30° |
| Max. Bucket Digging Force | 30KN |
| Max. Arm Digging Force | 18KN |
| Engine Model | KUBOTA D1703 |
| Power/Revolution speed | 18.2KW/2200 rpm |
| Bucket Capacity | 0.12m³ |
| System Pressure | 22.5MPa |
| Max. Digging Height | 4800mm |
| Max. Dumping Height | 3406mm |
| Max. Digging Depth | 3208mm |
| Max. Vertical Digging Depth | 2957mm |
| Max. Digging Radius | 5480mm |
| Min. Swing Radius | 2530mm |
| Max. Dozer Blade Lifting Distance | 365mm |
| Max. Dozer Blade Cutting Distance | 385mm |
| Total Length | 4915mm |
| Total Width | 1720mm |
| Total Height | 2525mm |
| Cabin Height | 2290mm |
| Axle Base | 1670mm |
| Wheel (Track) Distance | 1420mm |
| Minimum ground clearance | 295mm |
| Tail Swing Radius | 870mm |
